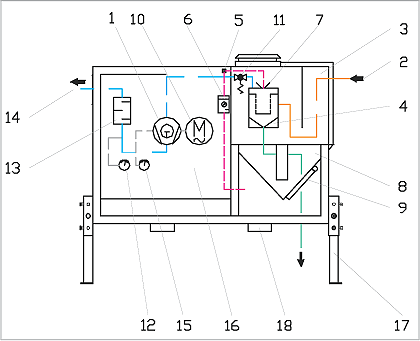

1. Rotary piston blower with thermal protection
2. Suction connection with rapid action coupling (V unit)
3. Sedimentation chamber with efficient prefractionator
4. Cartridge filter with automatic dedusting of compressed air
5. Magnetic valves
6. Maintenance unit for compressed air
(filter and pressure reducer)
7. Venturi nozzle to reduce the demand of compressed air
8. Dust funnel
9. Hand refuse flap
10. Electric motor/diesel motor
11. Suction safety valve
12. Temperature monitoring with temperature indication
13. Resonance sound absorber and splitter attenuator
14. Blow-out channel
15. Depression indicator
16. Rack with soundproof segments
17. Bearers vertically adjustable
18. Piling pockets
|
