Blastig nozzles
The nozzles are marked by high stability and they are suitable for any kinds
of abrasive. Material and size have to adapted to the respective abrasive or
the respective case of application.
The delivery program includes - among other things - short discharge
nozzles in conventional design or long discharge nozzles in venturi design. The
nozzles are made of tungsten carbide, silicon nitride or boron carbide. The shell
is made of aluminium or shock resistant synthetic material. Respective nozzles
are available for treating inner surfaces of pipes. Pipes having a higher diameter
are treated with respective inside blasting devices.
|
|
|
|

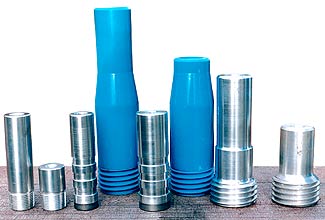

Different kinds of
blasting nozzles
|
|
The nozzles fitting for jet hoses and having an inner diameter of 13 - 42
mm have a very long lifetime and you can get them in different qualities
depending on the abrasive.
It is possible to add water to the mixture consisting of abrasive and compressed
air in the nozzle to bind dust. |
|
|
|

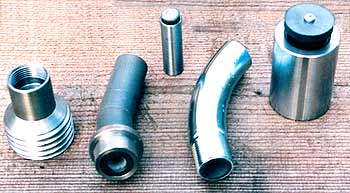

Arch nozzles,
angle nozzles
as well as
inner pipe
blasting nozzles
|
|

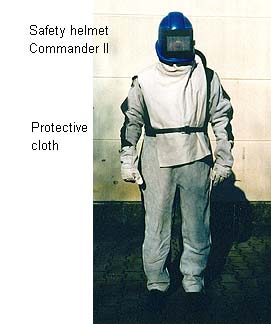

Protective clothes and Safety helmets
Protective clothes
Made of highly breathable grey cotton cloth, all parts turned to the object to be blasted and being subject to wear are covered with split leather.
|
Safety helmets
Apart form the shown helmets made of synthetic material a helmet made of aluminium
is also part of the delivery program like helmets for smaller blasting processes.
The air supply is realised by a compressor via an activated carbon filter. Optionally,
breathing air can be heated or cooled.
|
Metering valves DV-80 and ADV-80
Both metering valves are progressively adjustable from 0 - 100% and
allow a cross-section as maximum as possible during the blasting process.
Metering is simply implemented by a handwheel. In addition, the metering
valve ADV-80 offers the possibility to switch off the abrasive via remote
control from the blaster so that compressed air only comes out just at
the nozzle.
|
|
|
|
Metering valves DV-80 and ADV-80 |
|
|
|
